ASD - Reverse Mount E-Brake

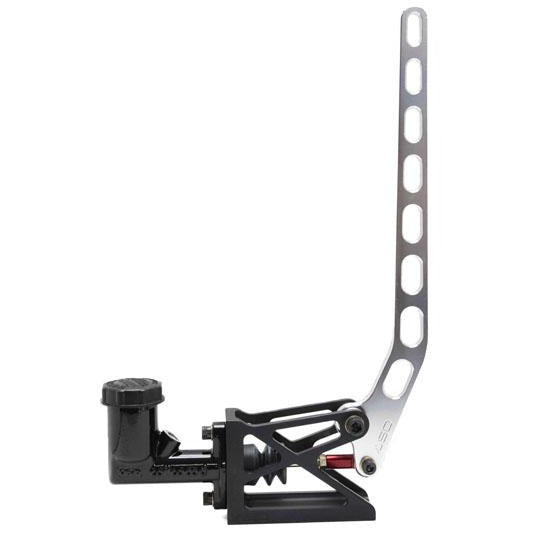

Many of you have asked and ASD listened…The all new ASD 15.25″ “Reverse Mount” E-brake is here!

This new updated product has been re-designed from a blank CAD screen, specifically as a reverse mount option.

The ASD reverse mount pull back e-brake has been designed to place the master cylinder further away from the driver. Although not necessary in all vehicles, this improves room for the driver in smaller vehicles – or for larger drivers who are a little more cramped in their cars.

For those who prefer to mount their ASD e-brake on the side of the tunnel rather than on top of the tunnel, this new product also allows a lot more seat room by placing the master cylinder in the forward location and away from the seat.

It is a few dollars more expensive than our original ASD e-brake product due to the increased manufacturing costs of the one piece CNC machined base, but for those who want a little more driver room in their cars it is the perfect solution.

If you are on a budget and saving a few bucks makes a difference, we understand! We still offer the original style ASD E-brake too.

The “Reverse Mount” ASD E-brake features include:

• 15.25” e-brake handle, CNC machined from 6061-T6 aluminum

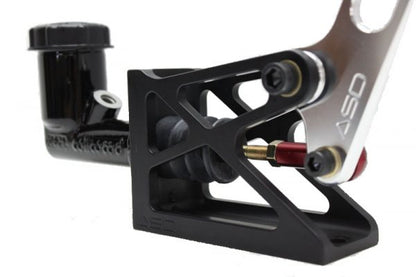

• 6061-T6 Aluminum base, CNC machined from one single block for maximum strength
• Your choice of Black or gold anodizing on the CNC machined base
• Your choice of Wilwood master cylinder sizes (5/8” or 3/4”)
• Your choice of Wilwood “reservoir” or “pass-through” style master cylinder
• Black powder coating on master cylinder. We disassemble, inspect, powdercoat, and reassemble every single Wilwood master cylinder for build quality assurance.
• 6061 Aluminum, red anodized FK Bearing heim joint with PTFE liner for maximum life
• Proper Aircraft grade hardware and Mil-Spec AN washers
• Plumbing hardware options for -3AN lines
• Plumbing hardware options for 3/16” steel brake line tube
• Same bolt pattern on the base as our other ASD products (will bolt right onto your same tunnel mount)
• Complete e-brake assembly only weighs 2 lbs 3 oz! (1 kilogram). CAD designed to be lightweight but very strong for years of abuse!
• 100% designed and manufactured in the USA.
