Titan Motorsports - ULTIMATE 2JZ-GTE RACE PISTON
Titan Motorsports - ULTIMATE 2JZ-GTE RACE PISTON
SKU: TMS-SUP-ENG-409 ⓘ
Get the best deal with our price match guarantee.
Contact us today!
(239) 270-5116
sales@drifthq.com
ENTRIES: 280
This purchase would enter you into the 1 of 20 Signal Green F80 M3 giveaway with 280 entries. Learn more
Regular price
$1,399.00 USD
Regular price
Sale price
$1,399.00 USD
Unit price
per
Couldn't load pickup availability

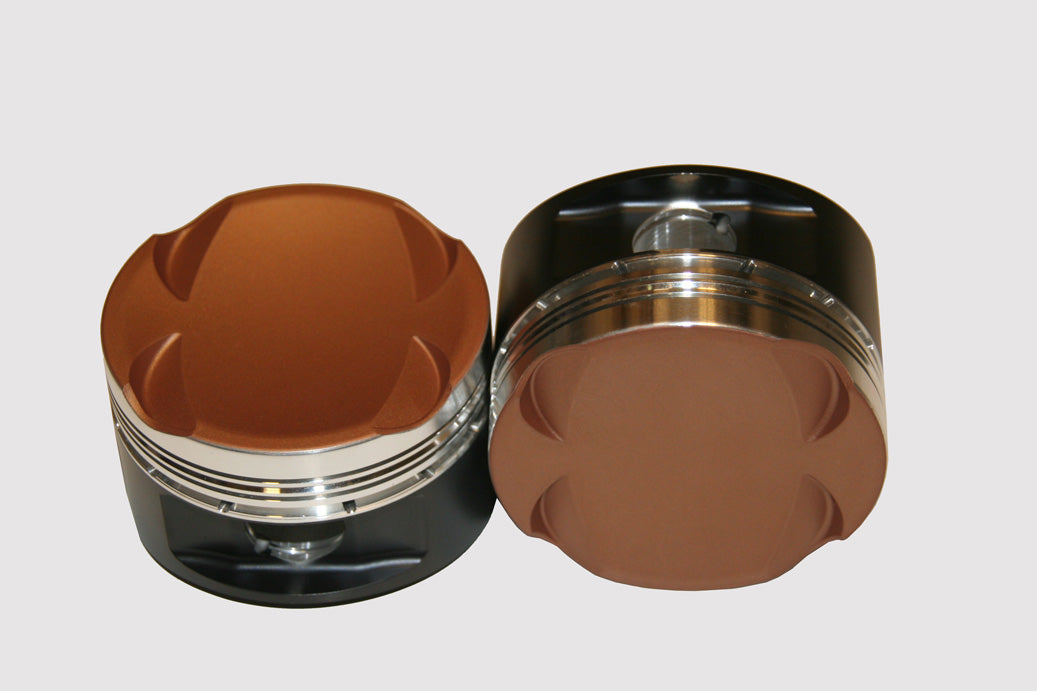

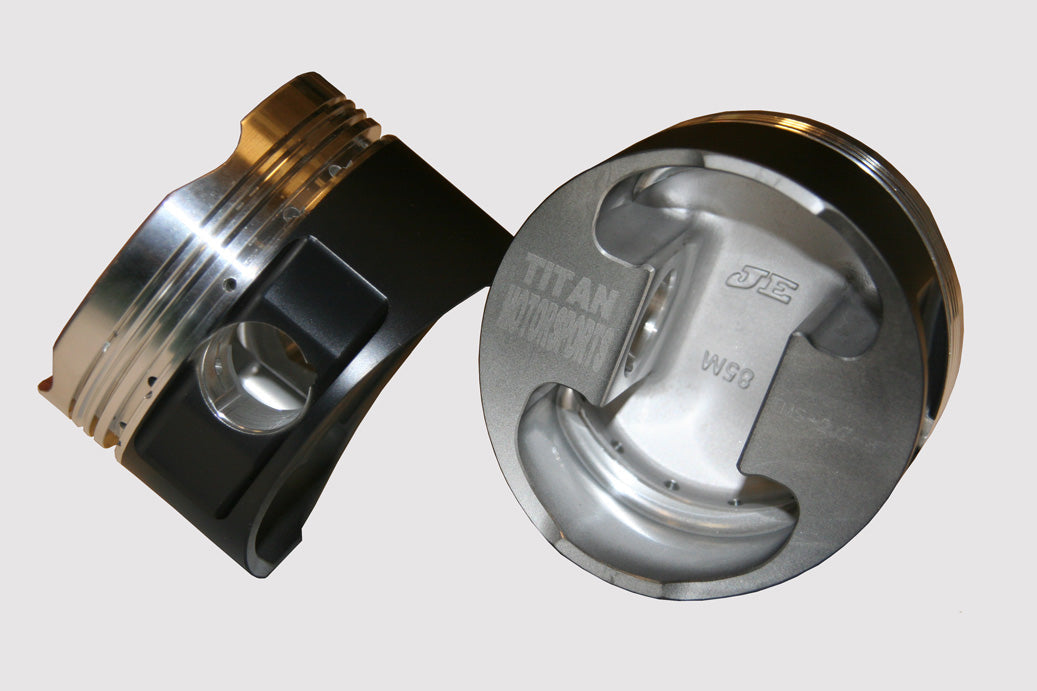

We have come joined together with JE pistons to bring to you the Titan Motorsports Ultimate Piston.
The specs are the following.
1. Crown Coated
2. Skirt Coated
3. Pin Fitting:
The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
4. Double Pin Oilers:
Double Pin Oilers deliver twice the amount of oil to the wrist pin as compared to the standard single pin oiler. This is always recommended with high rpm performance engines.
5. Accumulator Groove:
An accumulator groove is machined into the land between the top and second ring. It provides additional volume where residual combustion gases that have blow by the top ring can collect. this additional volume help to reduce pressure between the top and second ring, thus aiding top ring seal and minimizing ring flutter.
6. Upgraded wrist pins to thick wall.
View full details
The specs are the following.
1. Crown Coated
2. Skirt Coated
3. Pin Fitting:
The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
4. Double Pin Oilers:
Double Pin Oilers deliver twice the amount of oil to the wrist pin as compared to the standard single pin oiler. This is always recommended with high rpm performance engines.
5. Accumulator Groove:
An accumulator groove is machined into the land between the top and second ring. It provides additional volume where residual combustion gases that have blow by the top ring can collect. this additional volume help to reduce pressure between the top and second ring, thus aiding top ring seal and minimizing ring flutter.
6. Upgraded wrist pins to thick wall.
-
