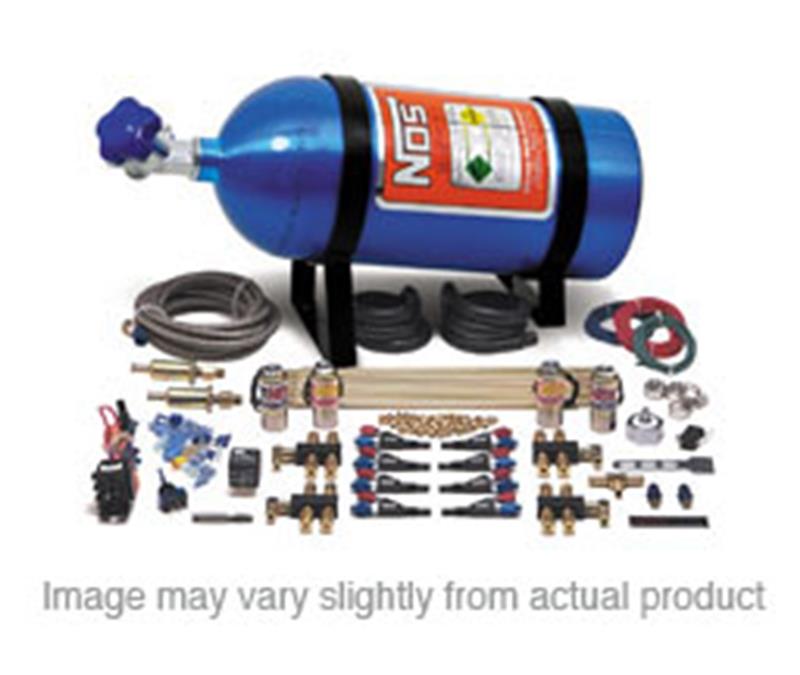

Nitrous Oxide System - NOS Sportsman Fogger Nitrous System Inline 6-Cylinder (05040-FINOS)

Nitrous Oxide System - NOS Sportsman Fogger Nitrous System Inline 6-Cylinder (05040-FINOS)

Vendor: Nitrous Oxide System

Available: In stock

SKU: Nitrous Oxide System-05040-FINOS

$1,060.95

Sportsman Fogger Nitrous System for 6-Cylinder Engines   Installation Notes: To supply the carburetor and the Sportsman Fogger System in carbureted applications, use a fuel pump designed to operate between...

FAST SHIPPING

On all products!


RETURNS

60 days return policy


TELEPHONE SUPPORT

(239) 270-5116

Sportsman Fogger Nitrous System for 6-Cylinder Engines



Installation Notes:
  • To supply the carburetor and the Sportsman Fogger System in carbureted applications, use a fuel pump designed to operate between 5 and 10 psi with a flow rate of 0.1 gallons per hour per horsepower at 6 psi.
  • Fuel injected applications will require a fuel pump that flows at least 0.1 gallons per hour at system pressure. For example at 42 psi flowing, a motor that makes 450 hp while the nitrous system is activated will require at least 45 g.p.h. at 42 psi flowing, and going down the track.
  • Due to high power levels and cylinder pressures produced by Sportsman Fogger Systems it is highly recommended that you use high quality forged pistons and rods as well as high quality racing ignition system with timing control. If horsepower gain in more than 40% of original, forged pistons are recommended.



    Jets Included:
  • Qty 6 each of #14, #16, #20 and #22
  • Jetting is for 65, 110 and 125HP power levels



  •

    Specifications:

    Type
    Port Injected 6 cyl.
    Bottle
    With Bottle
    Usage
    Street/Performance
    Quantity
    Sold as a kit
    Bottle Included
    Yes
    Bottle Brackets Included
    Yes
    Dual Stage
    No
    Nitrous System Style
    Wet
    Delivery Style
    Direct port/Intake manifold
    Maximum Advertised Horsepower Increase
    250
    Activation
    Microswitch
    Jet Sizes Included (hp)
    50, 75, 100, 125, 150
    Bottle Material
    Aluminum
    Bottle Color
    NOS Blue
    Bracket Material
    Steel
    Nitrous Bottle Capacity (lbs.)
    10
    Solenoid Quantity
    2
    Maximum Horsepower
    125
    Fuel Solenoid
    PowerShot
    Nozzle Quantity
    4
    Manufacturer's Part Number:
    05040-FINOS
    Shipping Weight:
    24.1
    Package Height:
    10.1
    Package Depth:
    24.4
    Package Width:
    10.3
