CXRacing - UNIVERSAL FRONT MOUNT TURBO INTERCOOLER TUBE & FIN 25

CXRacing - UNIVERSAL FRONT MOUNT TURBO INTERCOOLER TUBE & FIN 25"X11.5"X2.75" (IC0006-25-TF)

Vendor: CXRacing

Available: In stock

SKU: CXRacing-IC0006-25-TF

$101.85

CXRACING UNIVERSAL INTERCOOLER, TUBE & FIN CORE. 25X11.5X2.75 INCH OVERALL SIZE, 2.75" THICKNESS CORE, 2.5" INLET/OUTLETCXRacing's intercoolers are made with high quality aluminum materials and are designed to offer the...

FAST SHIPPING

On all products!


RETURNS

60 days return policy


TELEPHONE SUPPORT

(239) 270-5116

CXRACING UNIVERSAL INTERCOOLER, TUBE & FIN CORE. 25X11.5X2.75 INCH OVERALL SIZE, 2.75" THICKNESS CORE, 2.5" INLET/OUTLET

CXRacing's intercoolers are made with high quality aluminum materials and are designed to offer the best performance results yet still maintaining low competitive prices. Our intercooler are fully tested using superflow's industry leading SF1020 flowbench. Our turbo kits using the same intercoolers are also tested with superflow's SF-Powermark engine dynamometer.

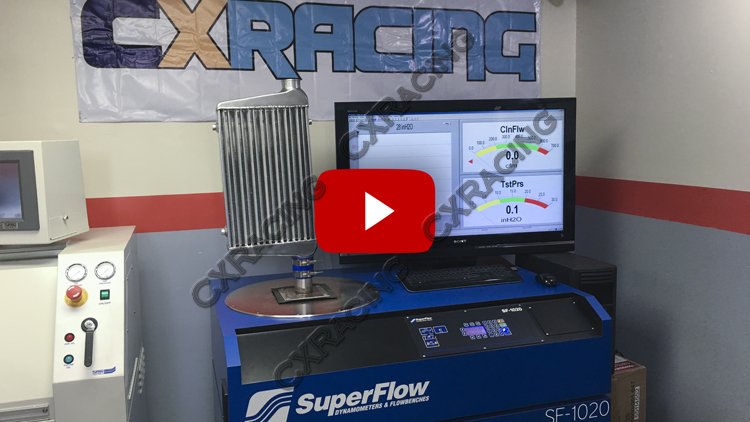

Our intercoolers are fully tested and track proven. See below for photos and video of the flowbench test.

NOTE:
Our flowbench tests are done with industry standard at 28 inch of H2O and also higher pressure. Intercoolers are normally used for boosted applications which flow at higher flow rates. However, many intercooler manufacturers/sellers list flowrates that inaccurate and stating a flow rate without even indicating the test pressure is misleading.

PRODUCT INFO AND SPEC:
(Measurements and Results Have +/- 2% Tolerance)
Construction:
Tube & Fin
Core Size:
18"x11.5"x2.75"
Overall Size:
25"x11.5"x2.75"
Inlet Size:
2.5"
Outlet Size:
2.5"

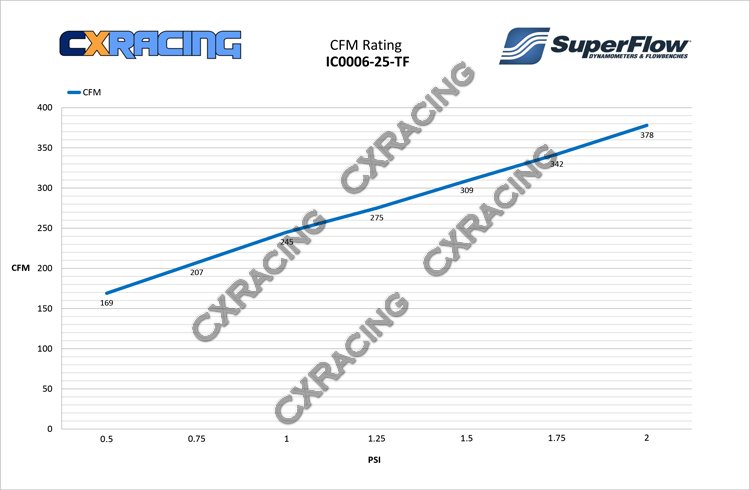

Flow Rate @ 28InH2O (1 PSI):
245 CFM
Flow Rate @ 50InH2O (~2 PSI):
378 CFM
HP Rating:
400-450 HP

NOTE:
- Off road or track use ONLY, not for Street use.
- Due to the complexity of a turbo/supercharger motor, or swapping a motor to a different chassis, please make sure that you understand the application stated here are the right parts for your poject.
- Part(s) being sold is what is being advertised ONLY. Other parts shown on installed pictures are for demo only (of our complete kit).

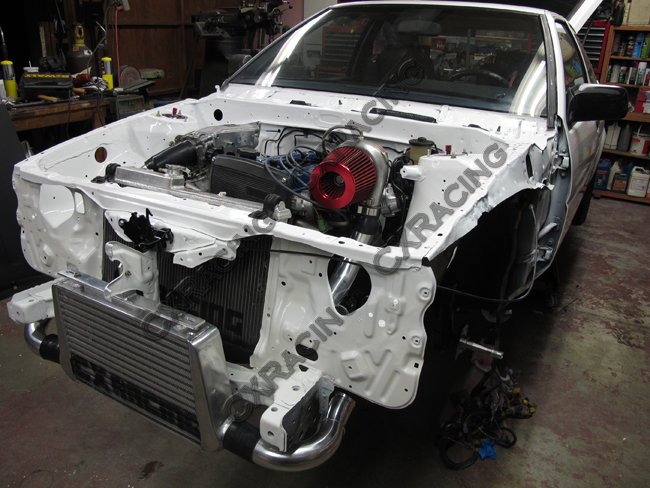

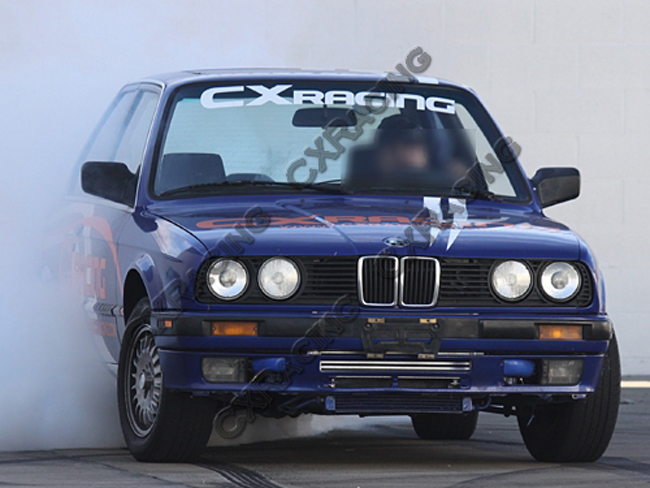

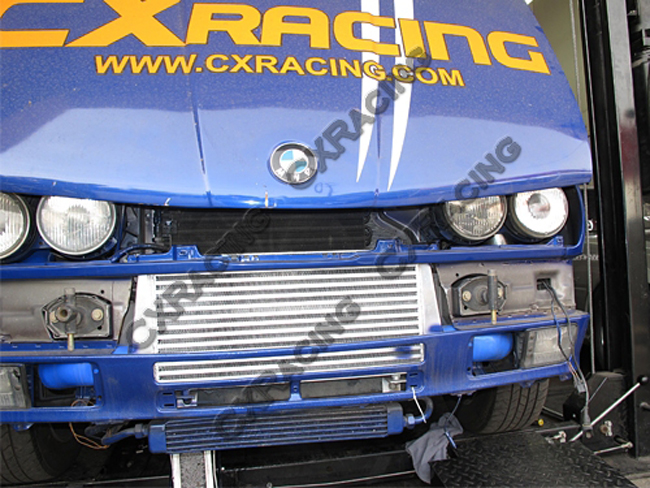

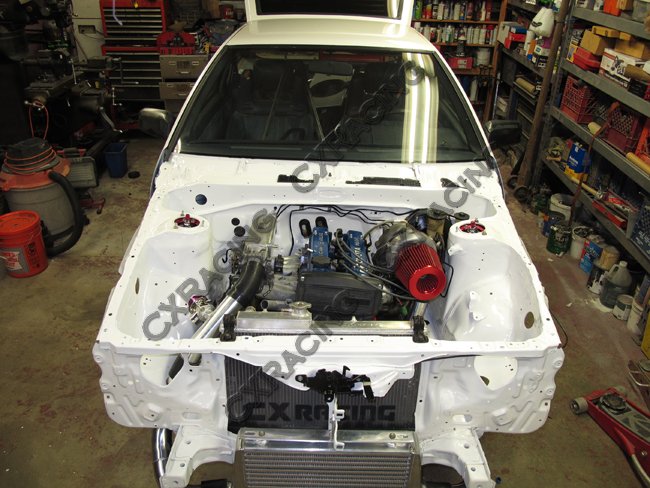

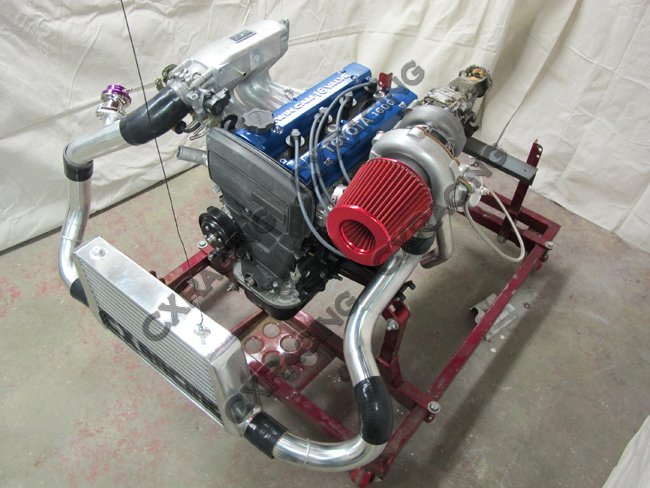

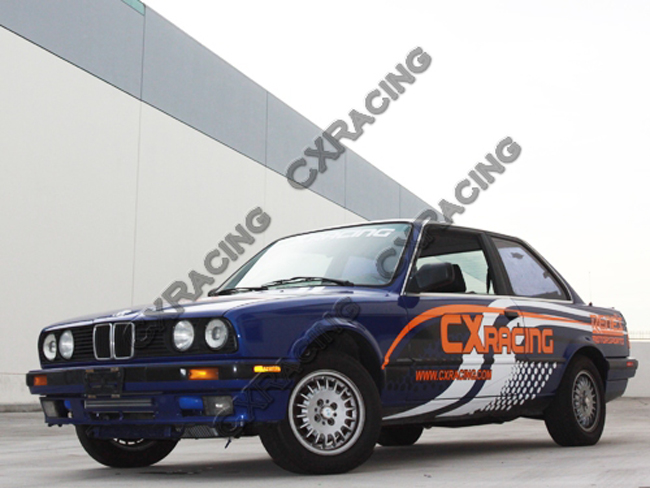

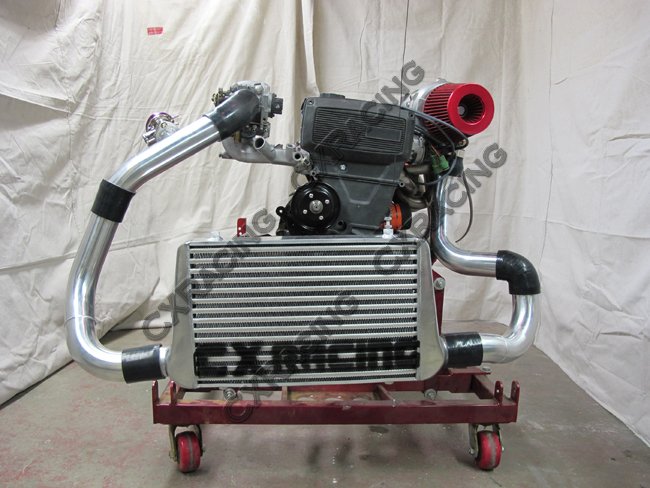

      Below Are Examples of Cars/Applications Using This Intercooler: For Toyota Corolla AE86 with 4AGE Engine             For 84-91 BMW 3-Series E30 Chassis / M20 Engine, 6 Cyl, Convert to Top Mount T3 /T4 Turbo.
