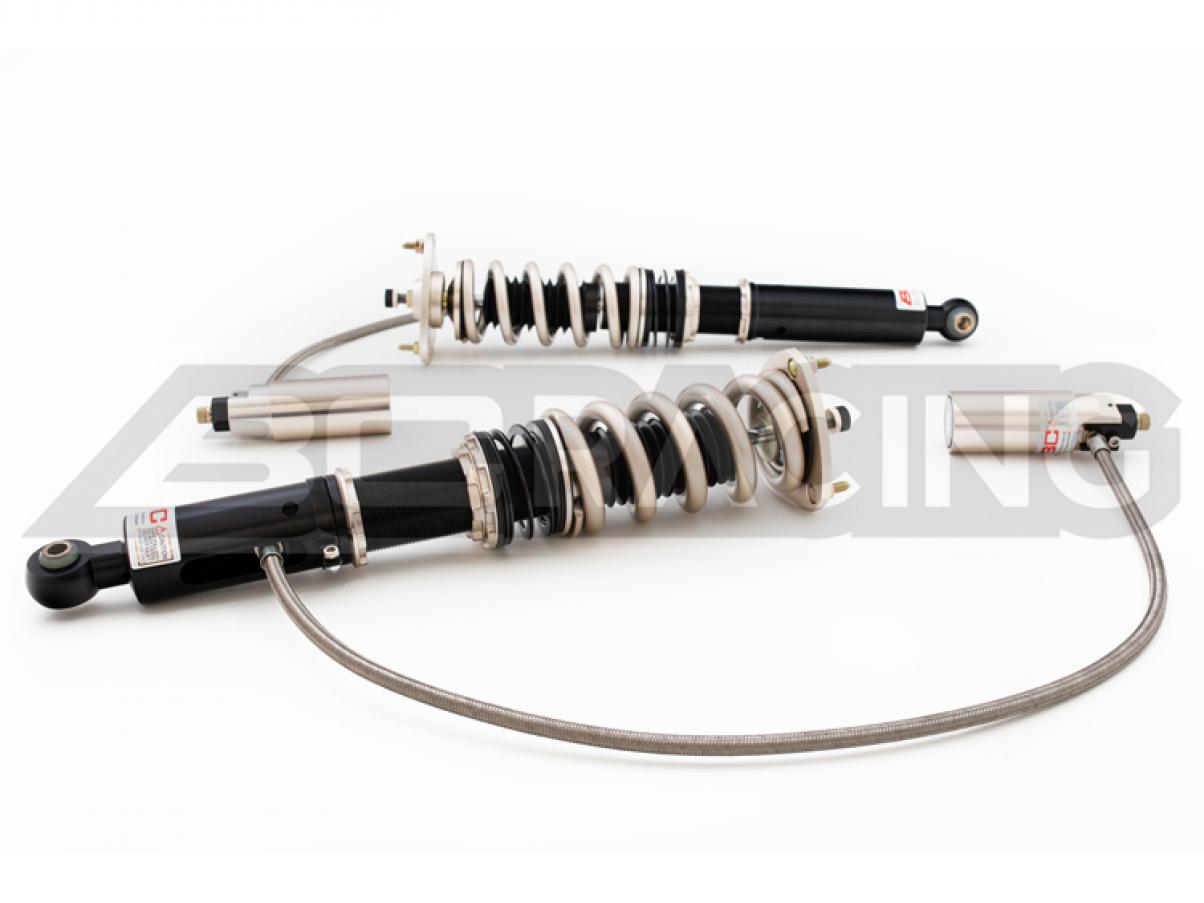

BC Racing - Type ZR BMW 07-13 3 Series M3 (w/o EDC) Coilovers (I-39-ZR)
BRAND: BC Racing
Available: In stock
SKU: BC Racing-I-39-ZR
On all products!
30 days return policy
The BC Racing ZR-Series Coilovers bring a 3-way adjustable track ready coilover system to racers from nocive to pro for an affordable price that has never been seen in the industry. Each ZR Series Coilover system offers independent low-speed/high-speed compression adjustments and seperate rebound adjustment. They also offer full eight-adjustability independent of piston travel and spring preload.
All ZR-Series Coilovers come with Swift springs standard!
An external reservoir for a coilover can serve many key features when taking your car to the track. One of the main features would be the fact that there is much more oil capacity present. With the external reservoir in place, there is an extra compartment to store fluids. This provides a significant increase in oil capacity, which will take longer for all of it to heat up. This better distributes the heat that the strut will make when in full operation. This will also lower the peak temperature that the oil will reach and permits it to be run longer before overheating. When oil heats up, it changes in viscosity and effects how efficiently it can function due to a variation in damper rates. Controlling the oil temperature can directly relate to controlling the damper consistency. More damper consistency will improve handling on road and track applications while being much more predictable.
Separate Compression and Rebound Damping Adjustment
By separating the adjustment for damping compression and rebound the ER Series allows you to dial the vehicle in to your exact needs. When braking hard whilst approaching a corner you want the car to transfer weight to the front tyres to maximise grip for the braking effort and also to allow you to trail brake into the corner without the car understeering.
As you start to lift off the brakes on corner entry you don’t want the suspension to snap back up too quickly as this will remove the loading from the front tyres too quickly and lead to understeer. As soon as the car starts to understeer you need to wind off the steering lock to reduce the work effort applied to the tyres to allow them to regain traction. This slows the vehicles ultimate speed.
The compression damping adjustment allows you to fine tune the way the car rolls onto its front tyres during braking and the separate rebound adjustment allows you to fine tune the way the car responds as you come off the brakes to enter the corner proper and keep the front end hooked up. This allows you to get back on the power sooner and maximise corner exit speed. Corner exit speed is vital because this determines you maximum speed achieved down the next straight.
Each ZR Series Coilover system offers independent low-speed/high-speed compression adjustments and seperate rebound adjustment.
Custom valving and springs rates are available by request. Contact via phone for a full quote.
Key Fetures include:
- Externally Mounted Reservoir
- Inverted Mono-Tube Damper With Twin Piston Design
- 30-Clicks of Independently Adjustable Rebound
- 15-Clicks of Independently Adjustable Low-Speed Compression
- 12-Clicks of Independently Adjustable High-Speed Compression
- Pillowball Front and Rear Mounts
- Height Adjustable via Shock Body Maintains Damper Stroke At All Ride Heights
- Custom Valved to Match The Drivers Specified Spring Rates
- Fully Rebuildable With All Parts Available
- Swift Springs Standard
- One Year Warranty
Spring rates for the front are 10kg/mm and 8kg/mm for the rear.
The ZR Series is available in only one mount version, standard with Pillowball Front and Rear mounts.
*Free shipping for 48 Contiguous States, Please call for HI, AK or International shipping rates.
SUPER LOW KIT, CUSTOM SPRING RATES, OR SWIFT SPRINGS ARE BUILT TO ORDER (4-6 WEEK BUILD TIME)
